VENTRAC
Ventrac
4500 Tractor
It only takes one test drive on this incredibly agile, yet power-packed tractor and you'll know that the Ventrac 4500 is in a class of its own. An innovative design combines all-wheel drive, an articulating frame, and powerful engines to give you unmatched stability and control to get work done. Most importantly, the Ventrac 4500 is designed to be the most fun you'll ever have on a tractor.
Bank Mowing
While slopes and hillsides add aesthetics and dimension to the landscape, those same hills and slopes can be very dangerous to mow without the right type of slope mowing equipment. Ventrac tractors offer a unique combination of benefits that no other piece of equipment can offer. Discover how Ventrac is a safer solution to your slope mowing needs for slopes up to 30 degrees (58% grade).

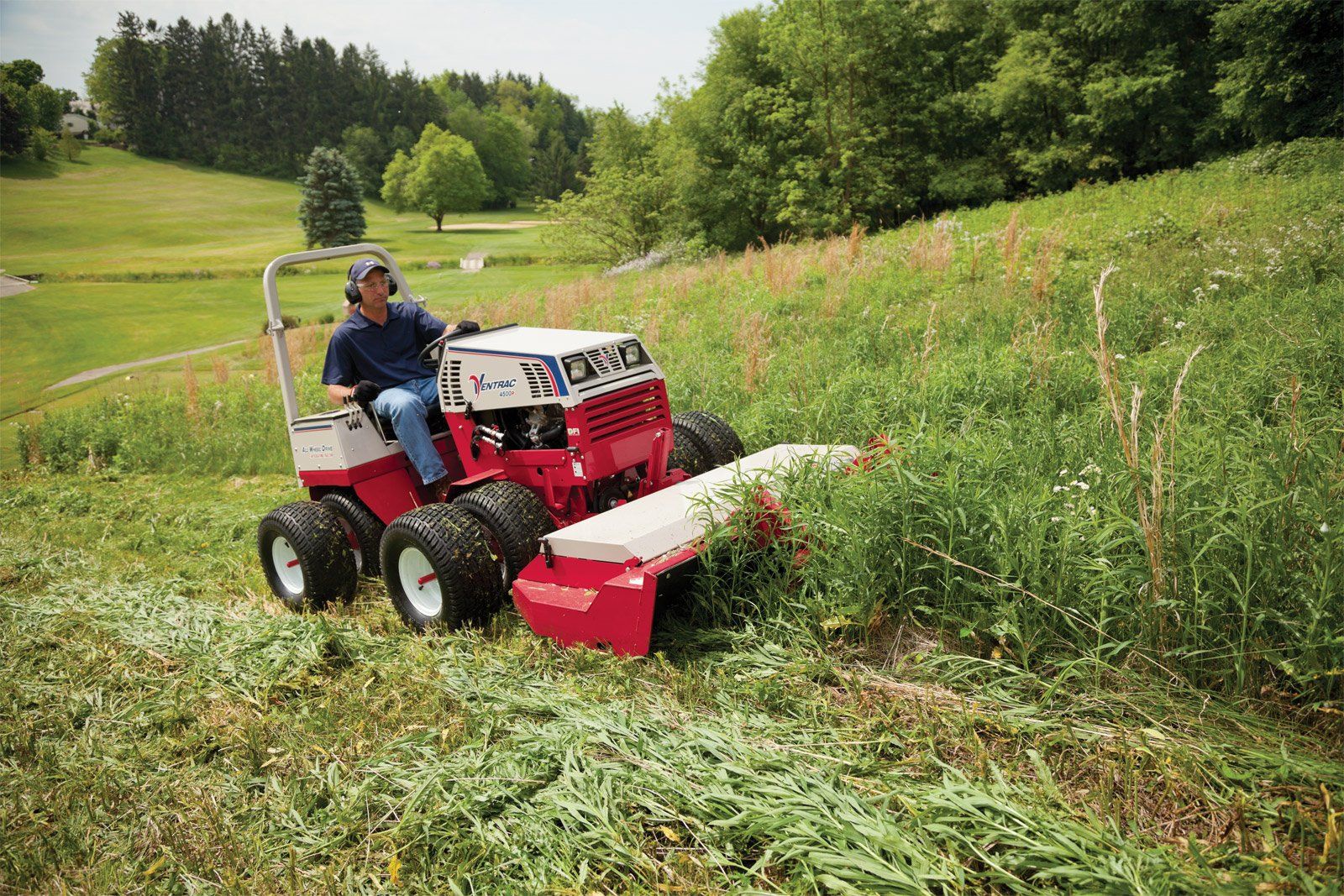

Tough Cut Deck
The HQ680 Tough Cut Mower is designed for mowing high grass, Thick Weeds & Heavy Brush. A large baffled front opening helps direct materials into the deck.
Three heavy-duty blades counter rotate to cut and deposit waste evenly without windrowing. Capable of tackling saplings and large thorn bushes, the Tough Cut makes short work out of overgrown thickets.
The Tough Cut can be adjusted to three cutting heights: 3, 3 5/8, and 4¼ inches. Easy servicing of belts and pulleys is provided by the hinged and removable cover. The tilt-up deck provides easy access to the blades.

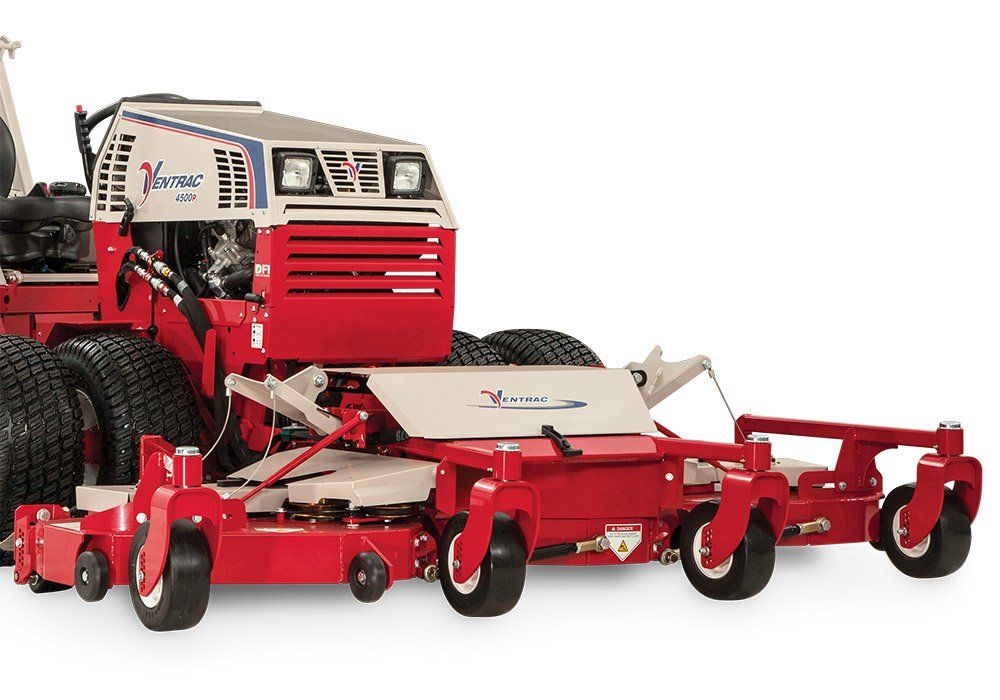

Contour Mower
Ventrac's Contour Mower features a 83 inch working width making quick work of any mowing job regardless of the terrain without sacrificing quality of cut. Three decks float independently and follow the contour of the terrain with up to 40 degrees of motion for each side deck. The MJ840 also features full rear rollers for even cutting and striping, rear discharge, and a flip-up deck design.
Feature List:
83" Mowing width
40 degrees of motion for side decks
Front-to-back motion for ground variation
Rear discharge
Full rear rollers for even cutting and striping
Front rollers for anti-scalping
Belt drive with gearbox for mechanical
efficiency and reliability
Flip-up deck design

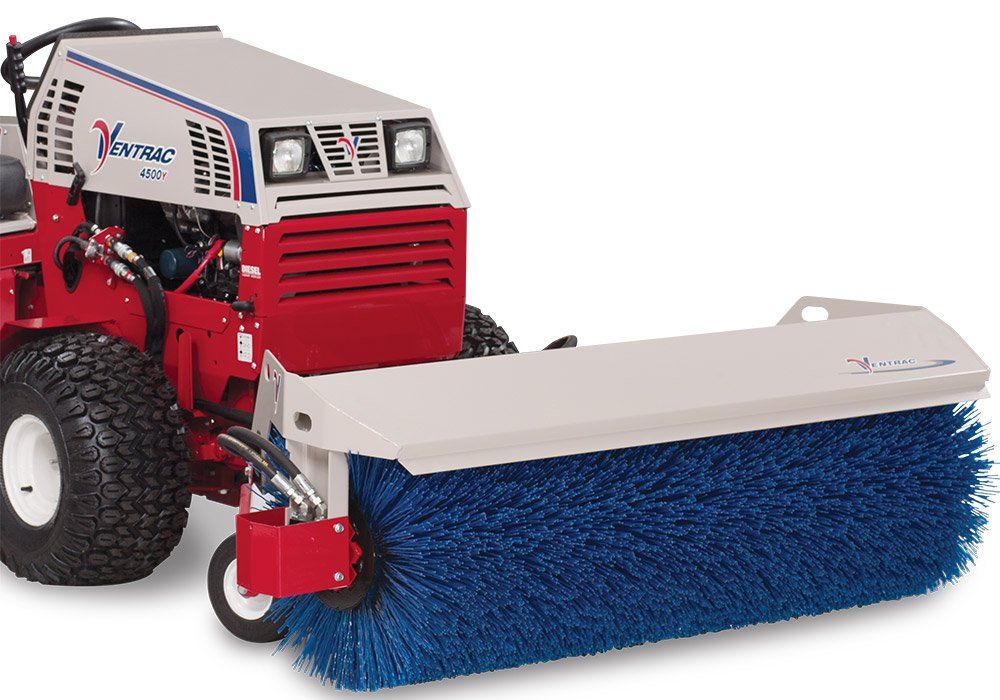

HB580 Rotary Brush
The HB580 Power Broom is designed for sweeping and removal of material such as snow, leaves, dirt, light gravel, and even thatch. A corner-less frame design permits sweeping against curbs and allows for the cleaning of corners.
The HB580 Broom can be hydraulically angled left or right and lifted up or down all with the S.D.L.A. Controls.
An optional electric actuator allows the operator to adjust the speed and direction of the broom rotation, maximizing effectiveness and allowing the operator to reverse broom rotation, all from the seat of the tractor.
The broom stands alone when detached and can be easily reattached. A self-leveling feature keeps the broom horizontal at all times, and the nylon bristle broom cores can be changed in just a few minutes.

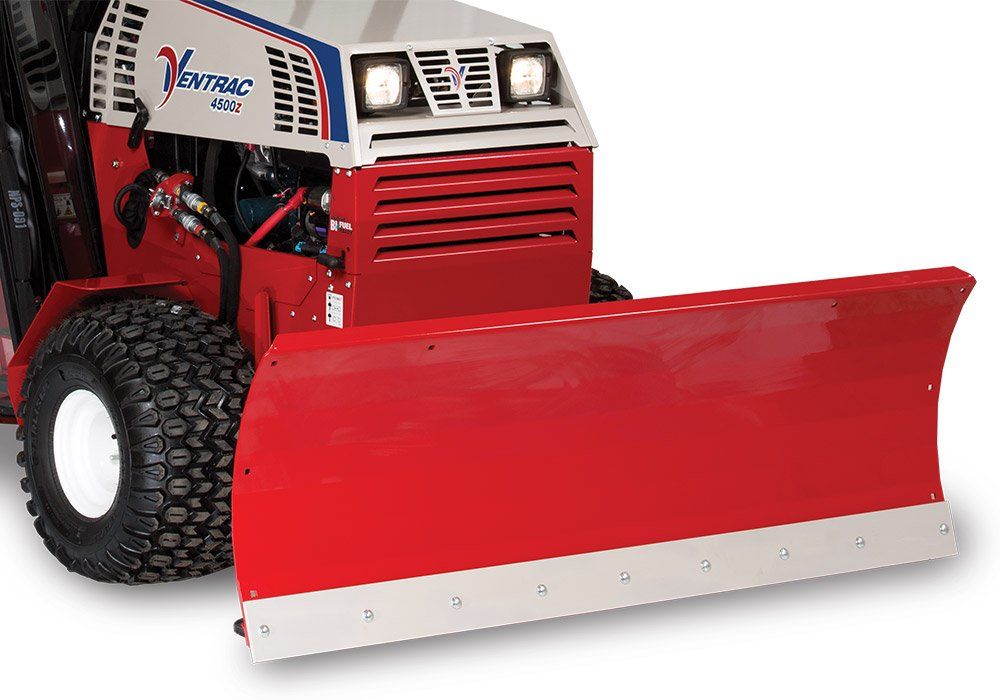

Dozer Blade
PRODUCT OVERVIEW
Ventrac KD Power Angle Blades have working widths of 48, 60, and 72 inches (122, 152, 183 centimeters). All control functions are performed with the S.D.L.A. control for raising and lowering the blade or angling it left or right. Adjustable skid shoes accommodate dozing at selected heights, such as moving snow on gravel driveways.
The blades can be operated in a trip position for plowing or in a locked position for digging into material.
Ventrac Power Angle Blades are versatile, labor-saving attachments designed for any number of jobs. From grading, leveling, and backfilling ground to plowing snow, moving material, or cleaning an area, the Ventrac KD series blades are up to the task.
MODELS
KD482 48" DOZER BLADE 39.55251
KD602 60" DOZER BLADE 39.55252
KD722 72" DOZER BLADE 39.55253
ACCESSORY OPTIONS
70.8032 KIT, POLYURETHANE EDGE KD 48"
70.8030 KIT, POLYURETHANE EDGE KD 60"
70.8031 KIT, POLYURETHANE EDGE KD 72"

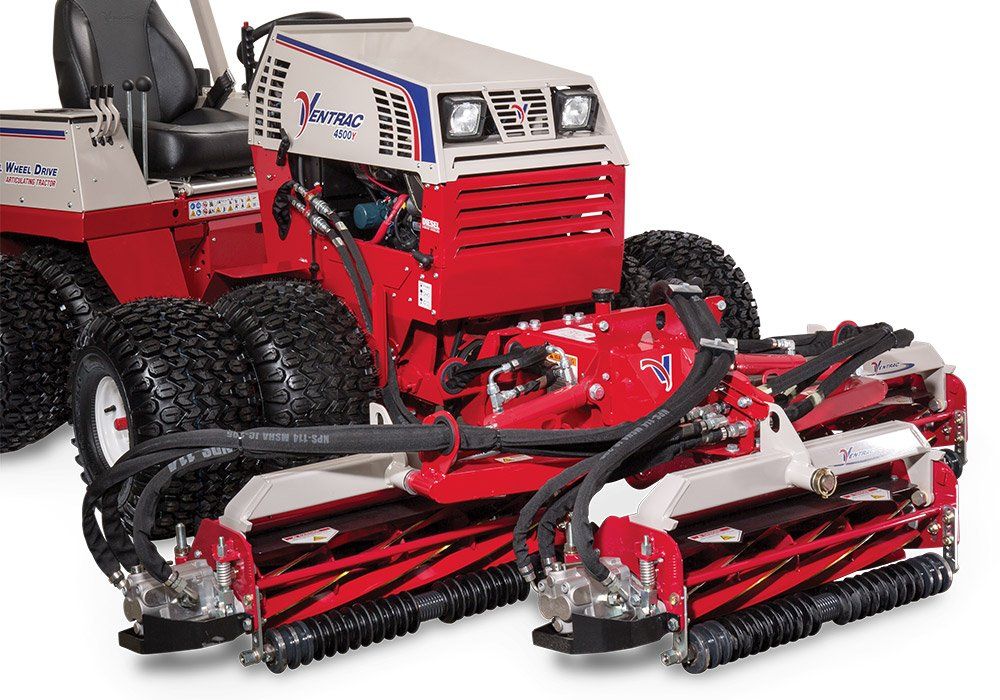

MR740 Cylinder Mowers
PRODUCT OVERVIEW
The Ventrac MR740 Triplex Reel Mower is designed to be the ultimate trim and surround mower. With a 74" width of cut, variable speed hydraulics, standard back lapping valves, and offset capability, the Ventrac MR740 includes many features to ensure superior, low-maintenance powered by the all-wheel performance.
When powered by the all-wheel drive Ventrac 4500 tractor with dual wheels, the MR740 can be operated on hills and slopes up to 30 degrees -- allowing you to go where no other reel mower can go. You will be amazed at the time and labor you'll save, and the beauty you'll leave behind.
MODELS
MR740 REEL MOWER 39.55130
ACCESSORY OPTIONS
23.0111-7 KIT, SPOOL FLOAT HYD. VALVE

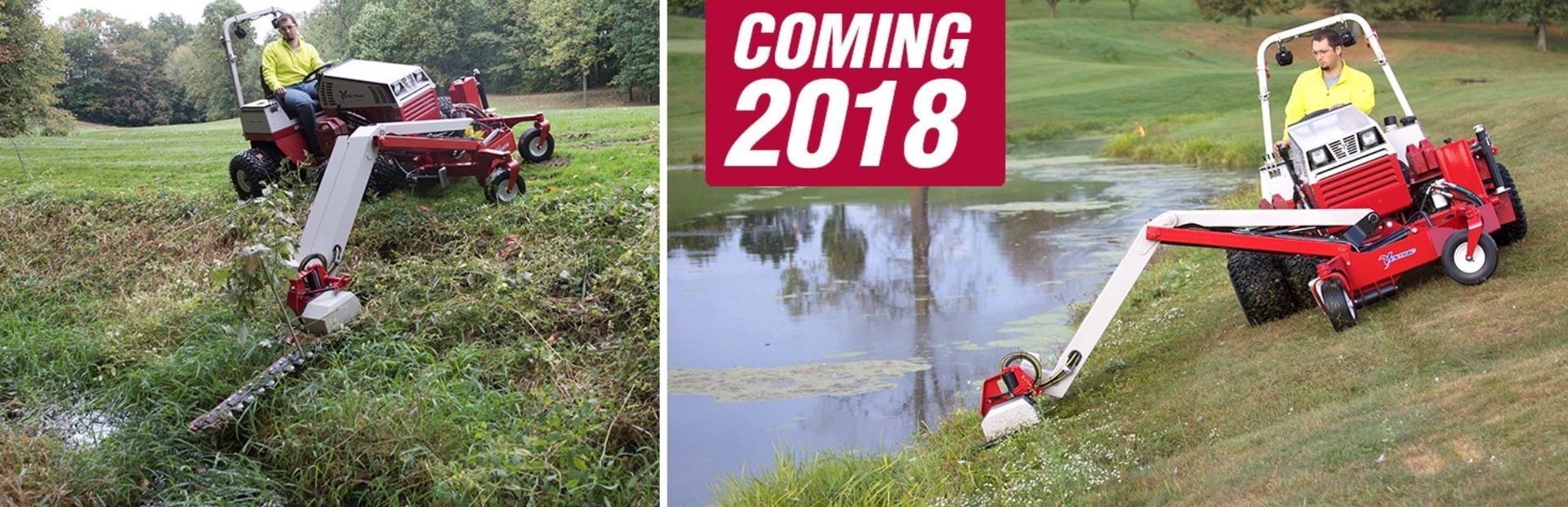

MA900 Boom Mower

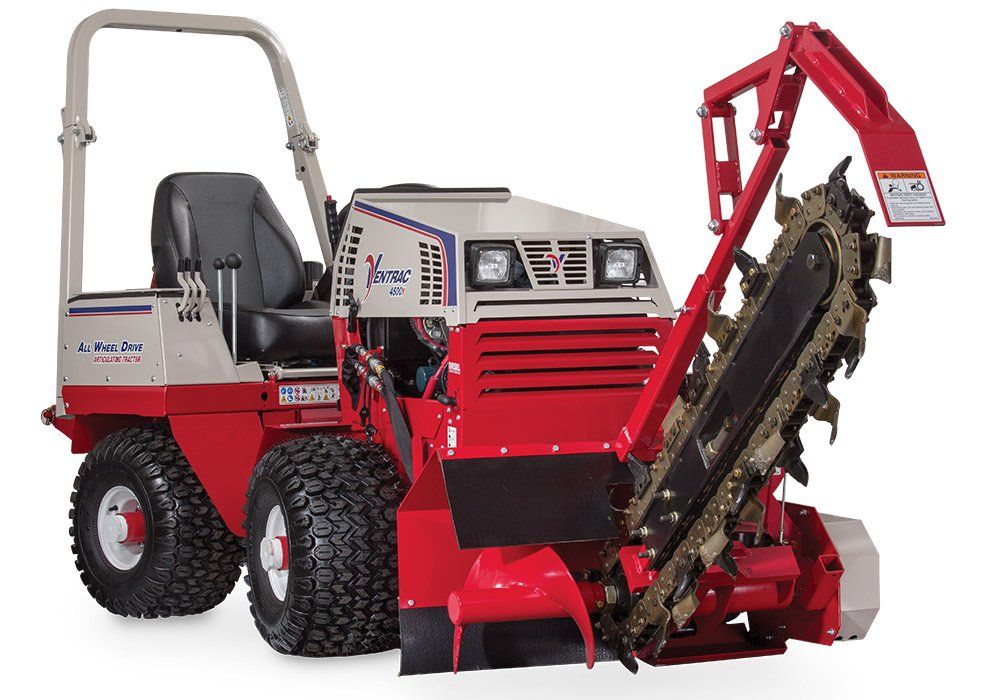

KY400 Trencher
PRODUCT OVERVIEW
The KY400 Trencher is capable of trenching up to 40 inches (102 cm) in depth with a 5½ inch (14 cm) wide cut. It is designed with dual Push-N-Pull cylinders to assure positive boom control for digging, boom lift, and transport.
The terminator/cup combo chain offers carbide cutting tips for excellent cutting performance in a variety soil conditions. Digging teeth bolt onto the chain for easy replacement.
The KY400 attached to a VENTRAC 4000 Series tractor gives the operator the ability to maneuver into hard-to-reach locations without damaging the turf like a traditional track unit would.
MODELS
KY400 TRENCHER 39.55455
